The armor joint is a classic design that is practical in many projects due to its strength and versatility.
It is suitable for floor thickness of 100~300mm to 300mm, and the joint opening can reach 20mm.
It can also be designed and supplied according to the customer’s plate thickness and joint opening.
Different materials are also available for MSARJ joints, such as black steel, hot-rolled galvanized steel, and stainless steel.
The MSARJ includes not only all standard products, but also crossover styles such as four-way, three-way, “L” bi-directional, and rounded corner segments.
Uses: Mainly used in industrial building construction joints, transfer channels, factory floors, etc.
Product Description:
MSBSL Type cast – in Expansion Movement Joint with Sinusoidal Profiled Cover Plate, used for the position of structural joints in floor of buildings. The system is mainly composed of a cover plate, a special connecting steel angle, a shear studs or U – shaped steel bar. Among them , the cover plate is composed of three parts , the left and right sides of the cover plate and the connecting steel angle are embedded in the floor together to form a permanent arises and supports , the middle part is a movable cover plate , the straight side and one side of the connecting angle steel is fixed with countersunk bolts , the S side sets on top of the other side angle for free movement.
Product Parameters:
| Version | Joint Arris Armoring | Steel Divider | Supporting Angle | Shear Stud | Anchoring U-bras | Gutter | Water Barrier |
| MSBSL Plain Steel | Q355B S355J2+N |
DCO1 HDG |
Q355B S355J2+N |
ML15A/SWRCH15 AS275JR |
HRB335 | Aluminum Aloy | EPDM |
| MSBSL HDG | Q355B S355J2+N |
DCO1 HDG |
Q355B S355J2+N |
ML15A/SWRCH15 AS275JR |
HRB335 | Aluminum Aloy | EPDM |
| MSBSL Stainless | SS201 SU201 |
DCO1 HDG |
SS201 SU201 |
ML15A/SWRCH15 AS275JR |
HRB335 | SS201 SU201 |
EPDM |
| MSBSL Stainless | SS304 1.4301 |
DCO1 HDG |
SS304 1.4301 |
ML15A/SWRCH15 AS275JR |
HRB335 | SS304 1.4301 |
EPDM |
| MSBSL Acid Proof | SS316 1.4401 |
SS316 1.4401 |
SS316 1.4401 |
SS304 1.4301 |
SS304 1.4301 |
SS316 1.4401 |
EPDM |

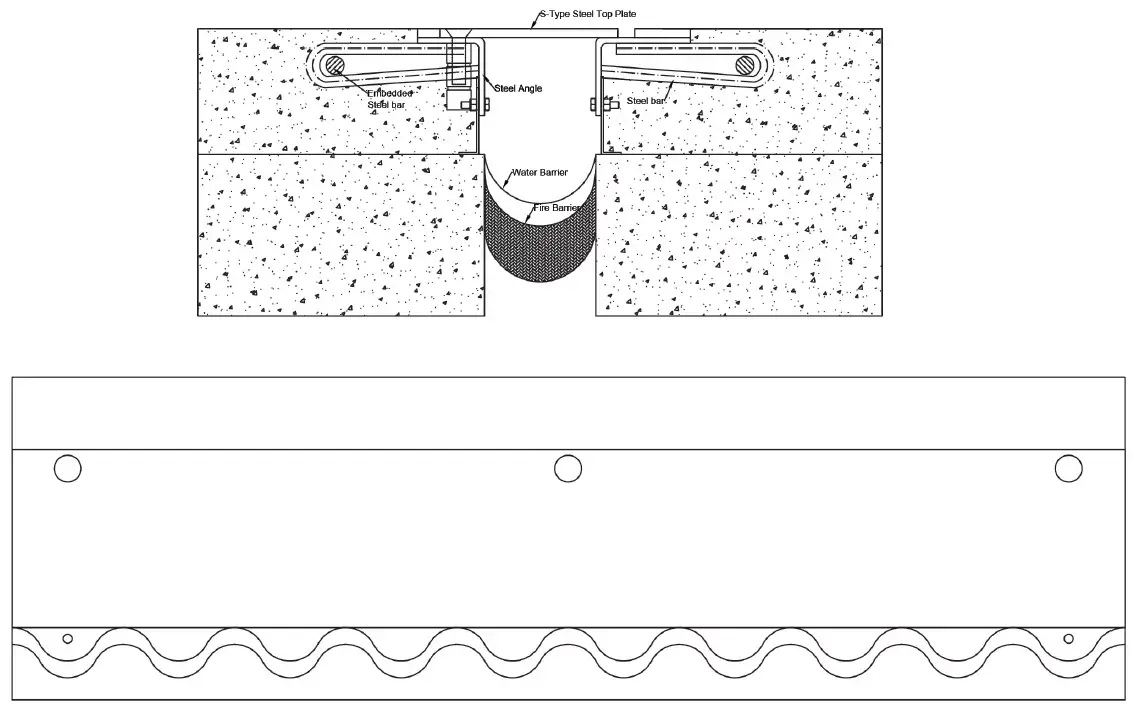

Product Drawing:
